Telescopic Tower Ladders

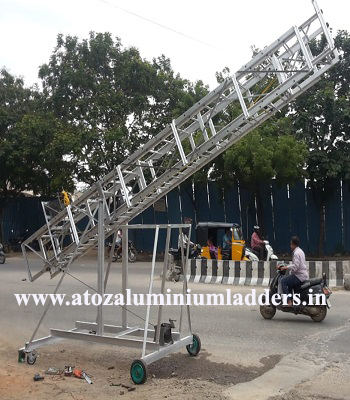

Tiltable Aluminium Telescopic Tower Ladders

Model No : 008

We are listed at the apex in the list of the most reliable Telescopic Ladders Suppliers from India. the use of optimum quality aluminium in the manufacturing of the Aluminum Telescopic Ladders ensure notable features like high durability, strength and resistivity to various adverse conditions. Additionally, customers are eased with the availability of the Telescopic Tower Ladders in varied lengths, sizes and dimensions to meet the requisites.

• The Telescopic Tiltable Tower Ladder is made out of high tensile Aluminium ‘C’ Section 66.66mm X 31.25mm X 3mm in thick.(approx).
• The steps are made out of non-slip Aluminium corrugated flooted pipe 25.4mm dia and 3mm in thick .The pipes are riveted at a distance of one foot between two steps.
• This ladder are made in single and double extension.
• Two nos of Winch Gear box are fixed to the ladder one for tilting ladder from horizontal to vertical position and one for extension of the ladder.
• M/S wire rope and pulleys are provided for easy movment of the ladder.
• A plat form is fixed at 3 ft from top of the ladder with tooltary.
• This whole ladder is mounted on MS base Made of ‘U’Channel and ‘L’angle with 4nos of Rubber bonded wheels with jacks. Available in sizes from 6’ft to 60’ft

Size Available in two sections:

• When Closed When Extended
• 8 Feets 14 Feets
• 10 Feets 17 Feets
• 12 Feets 21 Feets
• 14 Feets 25 Feets
• 16 Feets 29 Feets
• 18 Feets 32 Feets
• 20 Feets 35 Feets
• 24 Feets 40 Feets

Size Available in three sections:

• When Closed When Extended
• 8 Feets 20 Feets
• 10 Feets 24 Feets
• 12 Feets 30 Feets
• 14 Feets 34 Feets
• 16 Feets 40 Feets
• 18 Feets 45 Feets
• 20 Feets 50 Feets
• 24 Feets 60 Feets

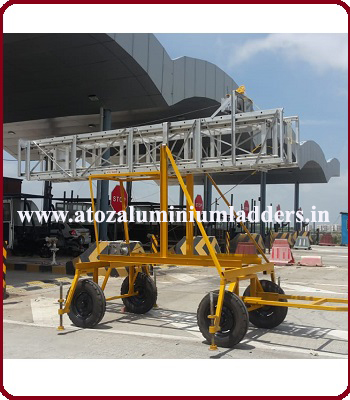

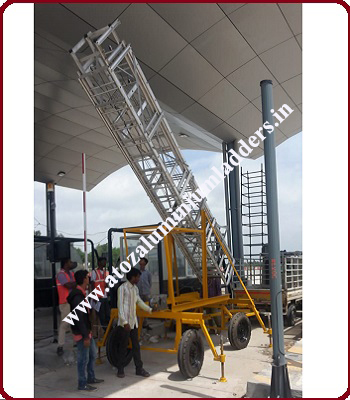

Tiltable Aluminium Telescopic Tower Ladders
With Large Wheels

Model No : 008

• The Telescopic Tiltable Tower Ladder is made out of high tensile Aluminium ‘C’ Section 66.66mm X 31.25mm X 3mm in thick.(approx).
• The steps are made out of non-slip Aluminium corrugated flooted pipe 25.4mm dia and 3mm in thick .The pipes are riveted at a distance of one foot between two steps.
• This ladder are made in single and double extension.
• Two nos of Winch Gear box are fixed to the ladder one for tilting ladder from horizontal to vertical position and one for extension of the ladder.
• M/S wire rope and pulleys are provided for easy movment of the ladder.
• A plat form is fixed at 3 ft from top of the ladder with tooltray.
• This whole ladder is mounted on MS base Made of ‘U’Channel and ‘L’angle with 4nos of Rubber bonded wheels with jacks. Available in sizes from 6’ft to 60’ft

Size Available in two sections:

• When Closed When Extended
• 8 Feets 14 Feets
• 10 Feets 17 Feets
• 12 Feets 21 Feets
• 14 Feets 25 Feets
• 16 Feets 29 Feets
• 18 Feets 32 Feets
• 20 Feets 35 Feets
• 24 Feets 40 Feets

Size Available in three sections:

• When Closed When Extended
• 8 Feets 20 Feets
• 10 Feets 24 Feets
• 12 Feets 30 Feets
• 14 Feets 34 Feets
• 16 Feets 40 Feets
• 18 Feets 45 Feets
• 20 Feets 50 Feets
• 24 Feets 60 Feets

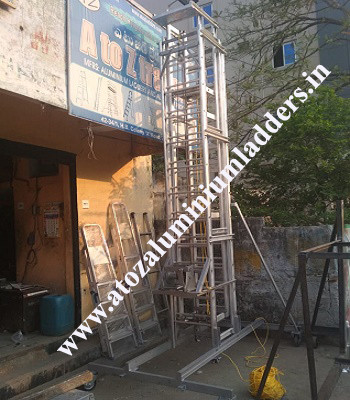

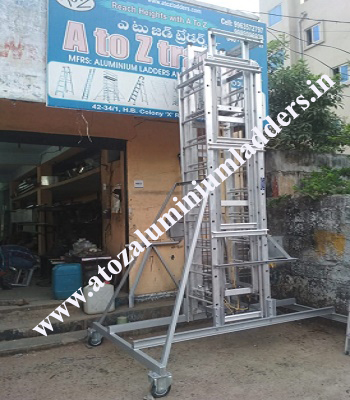

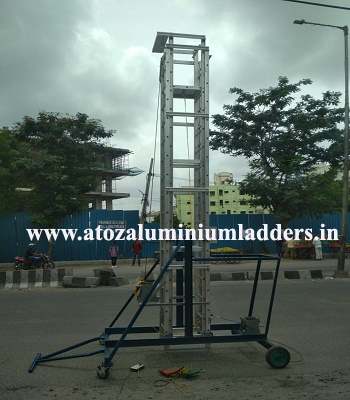

Non Tiltable Aluminium Telescopic Tower Ladders

Model No : 009

• The Telescopic Non-Tiltable Tower Ladder is made out of high tensile Aluminium ‘C’ Section 66.66mm X 31.25mm X 3mm in thick.(approx).
• The steps are made out of non-slip Aluminium corrugated flooted pipe 25.4mm dia and 3mm in thick .The pipes are riveted at a distance of one foot between two steps.
• This ladder are made in single and double extension.
• one no of Winch Gear box is fixed to the ladder one for extension of the ladder.
• M/S wire rope and pulleys are provided for easy movment of the ladder.
• A plat form is fixed at 3 ft from top of the ladder with tooltray.
• This whole ladder is mounted on MS base Made of ‘U’Channel and ‘L’angle with 4nos of Rubber bonded wheels. Available in sizes from 6’ft to 60’ft

Size Available in two sections:

• When Closed When Extended
• 8 Feets 14 Feets
• 10 Feets 17 Feets
• 12 Feets 21 Feets
• 14 Feets 25 Feets
• 16 Feets 29 Feets
• 18 Feets 32 Feets
• 20 Feets 35 Feets
• 24 Feets 40 Feets

Size Available in three sections:

• When Closed When Extended
• 8 Feets 20 Feets
• 10 Feets 24 Feets
• 12 Feets 30 Feets
• 14 Feets 34 Feets
• 16 Feets 40 Feets
• 18 Feets 45 Feets
• 20 Feets 50 Feets
• 24 Feets 60 Feets

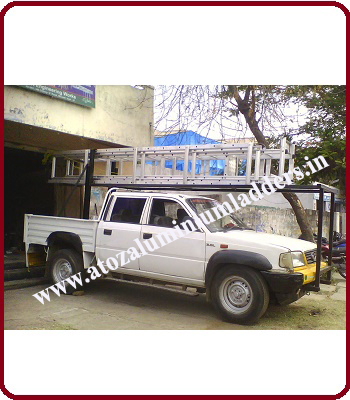

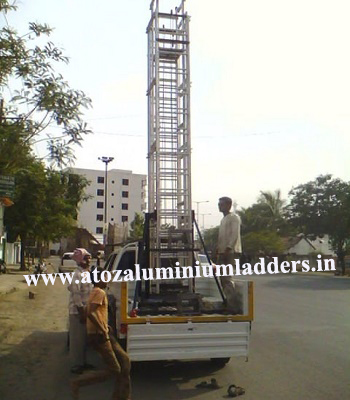

Vehicle Mounted Tower Ladder

Model No : 012

• The Telescopic Non-Tiltable Tower Ladder is made out of high tensile Aluminium ‘C’ Section 66.66mm X 31.25mm X 3mm in thick.(approx).
• The steps are made out of non-slip Aluminium corrugated flooted pipe 25.4mm dia and 3mm in thick .The pipes are riveted at a distance of one foot between two steps.
• This ladder are made in single and double extension.
• one no of Winch Gear box is fixed to the ladder one for extension of the ladder.
• M/S wire rope and pulleys are provided for easy movment of the ladder.
• A plat form is fixed at 3 ft from top of the ladder with tooltray.
• This whole ladder is mounted on MS base Made of ‘U’Channel and ‘L’angle with 4nos of Rubber bonded wheels. Available in sizes from 6’ft to 60’ft

Size Available in two sections:

• When Closed When Extended
• 8 Feets 14 Feets
• 10 Feets 17 Feets
• 12 Feets 21 Feets
• 14 Feets 25 Feets
• 16 Feets 29 Feets
• 18 Feets 32 Feets
• 20 Feets 35 Feets
• 24 Feets 40 Feets

Size Available in three sections:

• When Closed When Extended
• 8 Feets 20 Feets
• 10 Feets 24 Feets
• 12 Feets 30 Feets
• 14 Feets 34 Feets
• 16 Feets 40 Feets
• 18 Feets 45 Feets
• 20 Feets 50 Feets
• 24 Feets 60 Feets
