Self Supporting Ladders

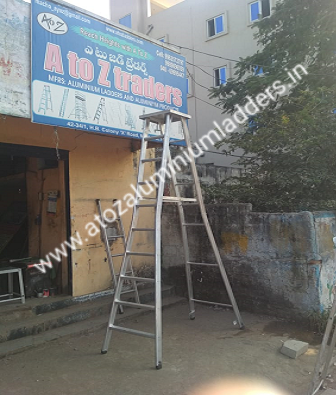

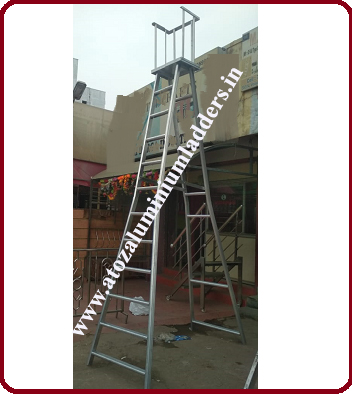

Self Support Flat Step Ladders

Model No - 002

We are engaged in Manufacturing of Self Support Flat Step Ladders in Hyderabad, India.

• The Self-supporting step ladder is made out of high tensile aluminium ‘C’section 66.6mm X 31.25mm X 3mm in thick.
• The steps for front frame are made out of aluminium ‘C’section 66.6mm X 31.25mm X 3mm in thick and at the back frame made out of 25.4mm round corrugated pipes and the pipes are riveted at alternate to main ladder.
• A platform is provided on the top of the ladder with aluminium checked plate.
• The ladder is hinged on both sides.
• A non-skidding thick rubber shoes is provided at the bottom of the ladder.
• Available sizes from 3’ft to 24’ft
• Platform Raillings can be provided on Special Request. (Optional)

• Heights Available
• 4 Feets 16 Feets
• 5 Feets 15 Feets
• 6 Feets 16 Feets
• 8 Feets 18 Feets
• 10 Feets 20 Feets
• 12 Feets 22 Feets

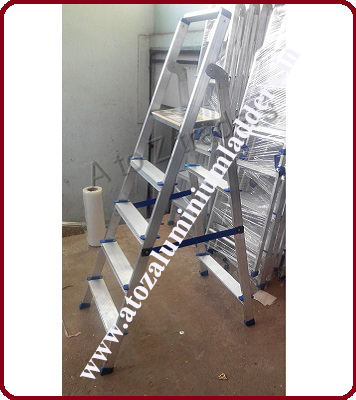

Foldable Ladders

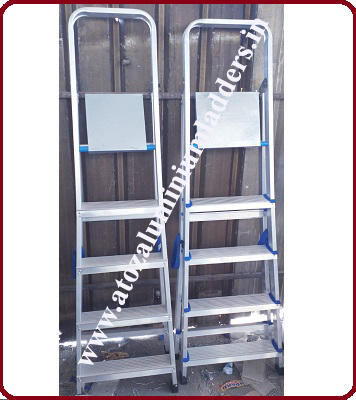

Model No - 003/A

These Foldable Ladders are mainly used for domestic pupose in home, offices, medical shops and other multi purpose use. We manufacture and supply in Hyderabad, India.

• These Ladders are made from high grade tensile aluminium to ensure its durability
• It Includes wide steps for comfort and stability.
• Non-Sked ribbed steps knee guard for added support edge protector/ Anti Skid PVC Shoes.
• Easily Foldable & Easy to Store.
• Heights Available from 3 Feets to 6 Feets.

Foldable Ladders

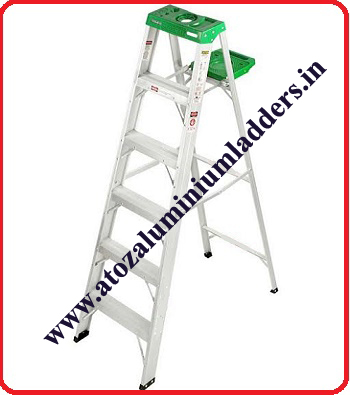

Model No - 003/B

These Foldable Ladders are mainly used for domestic pupose in home, offices, medical shops and other multi purpose use. We manufacture and supply in Hyderabad, India.

• These Ladders are made from high grade tensile aluminium to ensure its durability
• It Includes wide steps for comfort and stability.
• Non-Sked ribbed steps knee guard for added support edge protector/ Anti Skid PVC Shoes.
• Easily Foldable & Easy to Store.
• Heights Available from 3 Feets to 10 Feets.
• Aluminium Step Ladder with Heavy Duty Moulded tool tray for ease of use..

Iron Foldable Ladders(MS)

Model No - 003/C

These Foldable Ladders are used for Paintings, Decoratings, Loft Acces etc with Anti-Slip Rubber Treads, Anti slip shoes with safety groove. We manufacture and supply in Hyderabad, India.

• The step stool features non-marring feet, large standing platform that automatically locks in placce and a convenient handgrip making the stool easy to climb and carry.
• It Includes wide steps for comfort and stability.
• Easily Foldable & Easy to Store.
• Heights Available from 3 Feets to 6 Feets.
• These Ladders are Made of MS ( Mild Steel)

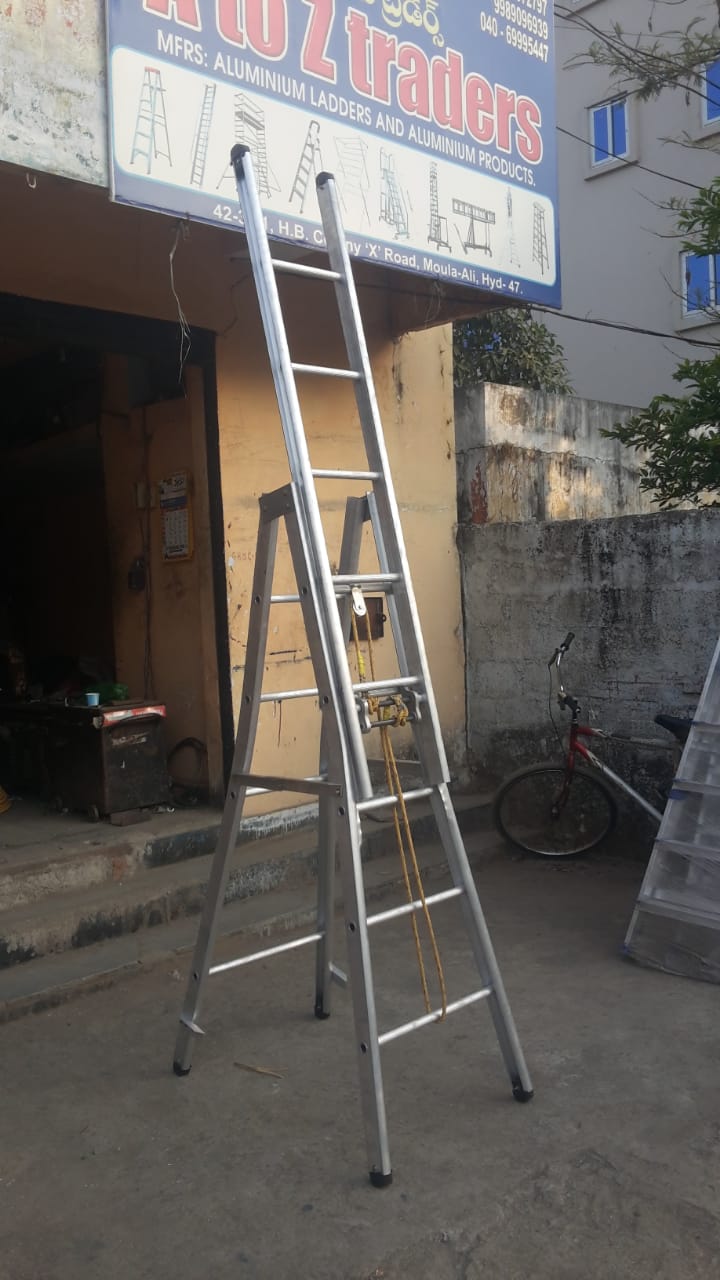

Self Support Extension Ladders

Model No - 006

• The self support extension ladder is made out of tensile aluminium ‘C’ section 66.6mm X 31.25mm X 3mm thick {approx}.
• The steps are made out of non –slip aluminium corrugated fluted pipe 25.4mm dia & 3mm thick.The pipes are riveted at distance of one foot between two steps.
• The ladder has a single sliding movement. A polypropylene rope of 12mm thickness is provided for easy and smooth sliding of the ladder.
• The sliding movement of the ladder is controlled by means gravity pawls and pulley mechanism.
• The ladder is hinged on both sides by aluminum ‘L’ angle
• A non skidding thick rubber shoes is provided at the bottom of the ladder.
• Available in sizes from 6’ft to 40’f

• Closed Extended
• 6 Feets 10 Feets
• 8 Feets 14 Feets
• 10 Feets 18 Feets
• 12 Feets 21 Feets
• 14 Feets 25 Feets
• 16 Feets 29 Feets
• 18 Feets 32 Feets
• 20 Feets 35 Feets
• 24 Feets 42 Feets

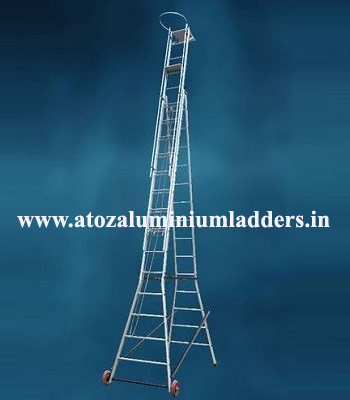

Self Support Extension Ladder with Accessories

Model No - 007

We are engaged in Manufacturing of Self Support Flat Step Ladders in Hyderabad, India.

• The self support extension ladder is made out of tensile aluminium ‘C’ section 66.6mm X 31.25mm X 3mm thick {approx}
• The steps are made out of non –slip aluminium corrugated fluted pipe 25.4mm dia & 3mm thick.The pipes are riveted at distance of one foot between two steps.
• The ladder has a single sliding movement. A polypropylene rope of 12mm thickness is provided for easy and smooth sliding of the ladder.
• The sliding movement of the ladder is controlled by means gravity pawls and pulley mechanism.
• A platform is fixed at 3’ft from top of the ladder,Hand rail,safety ring,tool tray,Handels and 2nos 8”inches dia fiber wheels are provided.
• The ladder is hinged on both sides by aluminum ‘L’ angle .
• A non skidding thick rubber shoes is provided at the bottom of the ladder
• Available in sizes from 6’ft to 40’ft

• Heights Available
• 8 Feets 14 Feets
• 10 Feets 17 Feets
• 12 Feets 21 Feets
• 14 Feets 25 Feets
• 16 Feets 29 Feets
• 18 Feets 32 Feets
• 20 Feets 35 Feets
• 24 Feets 40 Feets
